Cathodic Protection Cable is a single conductor cable that is intended to carry a DC current to anodes and cathodes in a cathodic protection system. This specification describes a stranded copper conductor with dual insulation. The primary layer of insulation is composed of KYNAR (also known as PVDF, Polyvinylidene fluoride), a fluoropolymer material that has exceptional chemical resistance in the presence of chlorine, sulfuric acid, and hydrochloric acid. The outer insulation layer is a low-density, high molecular-weight polyethylene (HMWPE), which exhibits superior dielectric and tensile strength, provides mechanical protection to the primary layer, and withstands considerable abuse during installation. KYNAR is also inherently flame resistant, making KYNAR cables suitable for applications where fire safety is a concern. In addition, KYNAR has good electrical insulation properties, making KYNAR wires suitable for electrical and electronic applications that require stable and reliable signal transmission.
Construction
Conductor: Stranded Bare or Tinned Copper, conforms to ASTM B-3 & B-8
Primary Insulation: A natural PVDF fl uoropolymer (KYNAR) shall be extruded around the conductor
Jacketing Insulation: High Molecular Weight Polyethylene (HMWPE) shall be extruded over the KYNAR primary insulation, conforms to ASTM D-1248
Applications
Our KYNAR Cables are suitable for direct burial for cathodic protection systems such as pipelines, storage tanks, pilings, well casings, cables, marine crafts, and other buried or water-submerged metallic structures.
Features
KYNAR provides resistance against:
- Chlorine
- Sulfuric Acid
- Hydrochloric Acid
Temperature
Operating temperature is 70 degrees Celsius
Rating
Voltage is 600 volts
Packaging
1000 ft, 2500 ft, 3500 ft standard reel lengths; custom lengths are available upon request. Identified by surface printing indicating manufacturer, conductor size, and insulation type; custom print legends are available upon request.

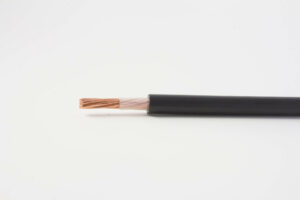

KYNAR cathodic protection cable by Performance Wire and Cable is made with fluoropolymer insulation with exceptional chemical resistance. KYNAR cable consists of a layer of insulation on the conductor, followed by a layer of HMWPE (high molecular weight polyethylene) insulation. The KYNAR insulation is extremely resistant to chlorine, sulfuric acid, and hydrochloric acid, which the HMWPE alone cannot withstand. The HMWPE outer jacketing can provide flexible strength and can withstand much abuse during installation without damaging the conductor. KYNAR wire is available in 8 AWG through 1/0 AWG sizes.
Additional KYNAR Applications and Specifications:
- KYNAR/HMWPE cables are used as deep anode lead wires where chlorine and hydrogen gases are generated
- The KYNAR cable can be directly installed in fresh, brackish, or salt waters
- The primary insulation is a homogeneous 20 mil wall of natural PVDF fluoropolymer (Kynar) that shall be extruded around the conductor
- The jacket is a 65 mil wall of high molecular weight polyethylene (HMWPE) that shall be extruded around the primary insulation, and the jacket conforms to ASTM Spec D 1248
- For identification purposes, the cable shall be surface printed with “Manufacturer name Conductor size AWG, KYNAR / HMWPE CATHODIC PROTECTION CABLE.”
| Conductor | Insulation | Finished Product | |||||
| AWG | Str | Diameter (in.) | KYNAR (PVDF) (in.) | HMWPE (in.) | Diameter (in.) | Lbs/Mft | Nominal DC Ohms |
| 14 | 7 | 0.073 | 0.020 | 0.065 | 0.243 | 37 | 2.62 |
| 12 | 7 | 0.092 | 0.020 | 0.065 | 0.262 | 47 | 1.65 |
| 10 | 7 | 0.116 | 0.020 | 0.065 | 0.286 | 62 | 1.038 |
| 8 | 7 | 0.146 | 0.020 | 0.065 | 0.316 | 87 | 0.645 |
| 6 | 7 | 0.184 | 0.020 | 0.065 | 0.354 | 122 | 0.407 |
| 4 | 7 | 0.232 | 0.020 | 0.065 | 0.402 | 185 | 0.256 |
| 2 | 7 | 0.292 | 0.020 | 0.065 | 0.462 | 269 | 0.162 |
| 1 | 19 | 0.332 | 0.020 | 0.065 | 0.502 | 328 | 0.129 |
| 1/0 | 19 | 0.373 | 0.020 | 0.065 | 0.543 | 410 | 0.102 |
| 14 | 7 | 0.073 | 0.040 | 0.065 | 0.283 | 47 | 2.62 |
| 12 | 7 | 0.092 | 0.040 | 0.065 | 0.302 | 58 | 1.65 |
| 10 | 7 | 0.116 | 0.040 | 0.065 | 0.326 | 76 | 1.038 |
| 8 | 7 | 0.146 | 0.040 | 0.065 | 0.356 | 100 | 0.645 |
| 6 | 7 | 0.184 | 0.040 | 0.065 | 0.394 | 137 | 0.407 |
| 4 | 7 | 0.232 | 0.040 | 0.065 | 0.442 | 202 | 0.256 |
| 2 | 7 | 0.292 | 0.040 | 0.065 | 0.502 | 289 | 0.162 |
| 1 | 19 | 0.332 | 0.040 | 0.065 | 0.542 | 359 | 0.129 |
| 1/0 | 19 | 0.373 | 0.040 | 0.065 | 0.583 | 433 | 0.102 |
- Chemical Processing: KYNAR cables are often used in chemical processing industries where exposure to corrosive chemicals is common. They can be used in sensors, instruments, and control systems where reliable signal transmission is essential.
- Aerospace and Defense: Due to their thermal stability, chemical resistance, and mechanical strength, KYNAR cables find applications in the aerospace and defense sectors. They can be used in aircraft, satellites, military vehicles, and communication systems.
- Oil and Gas: In the oil and gas industry, KYNAR cables are utilized in harsh environments where they are exposed to chemicals, high temperatures, and mechanical stress. They can be employed in downhole equipment, sensors, and control systems.
- Renewable Energy: KYNAR cables are suitable for solar panels and wind turbines, where they are exposed to UV radiation, temperature fluctuations, and outdoor conditions.
- Electronics: KYNAR cables are used in electronic devices and components due to their excellent electrical insulation properties. They can be found in high-performance connectors, cable assemblies, and PCBs.
- Laboratories: KYNAR cables are used in laboratory equipment where resistance to chemicals and high temperatures is crucial. They can be employed in analytical instruments, sensors, and research apparatus.
- Automotive: KYNAR cables are used in automotive applications where resistance to chemicals, heat, and mechanical stress is required. They can be found in sensors, wiring harnesses, and other critical components.
For more information, or to request a quote, contact us today.
